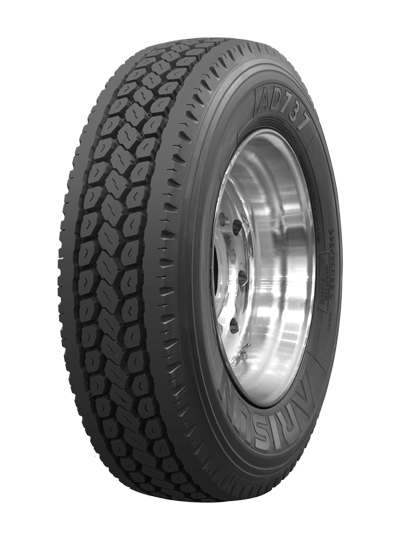

Arisun AD737

Benefits and Features

  • Closed shoulder design provides an outstanding stability in long haul application, and helps to prevent irregular wear
  • Computer designed tire structure offers less rolling resistance with better fuel economy
  • The advanced 4-belts casing design under the tread gives a higher level of casing durability and retreadability
  • The zig zag grooves provide excellent traction control on most road surfaces

Description

Size LR/PR Tread Depth
(32ND)
Service
Index
Standard
Rim
Overall
Diameter
(inch)
Section
Width
(inch)
Max. Load Capacity at Cold Inflation Pressure Revs per
Mile
Static
Loaded Radius
(inch)
Single Dual
(LBS) (PSI) (LBS) (PSI)
11R22.5 G/14 26 144/142L 8.25 41.9 11.0 6175 105 5840 105 496 19.5
11R22.5 H/16 26 146/143L 8.25 41.9 11.0 6610 120 6005 120 496 19.5
295/75R22.5 G/14 26 144/141L 9.00 40.2 11.7 6175 110 5675 110 521 18.7
11R24.5 G/14 26 146/143L 8.25 43.9 11.0 6610 105 6005 105 473 20.5
11R24.5 H/16 26 149/146L 8.25 43.9 11.0 7160 120 6610 120 473 20.5
285/75R24.5 G/14 26 144/141L 8.25 41.6 11.1 6175 110 5675 110 499 19.5

* We reserve the rights of final interpretation and modification
